Nordic driver. More...

#include <stdbool.h>
#include "utilities.h"
#include "bio.h"
#include "ssp0.h"

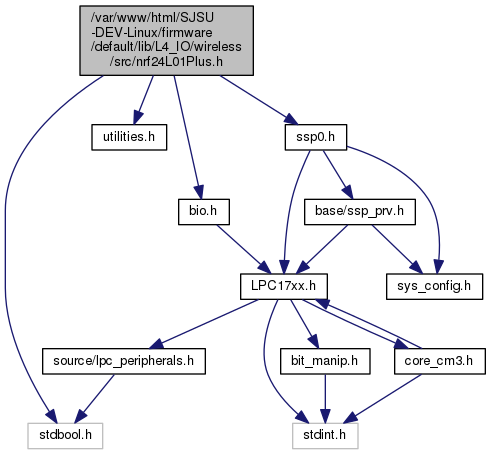

Include dependency graph for nrf24L01Plus.h:

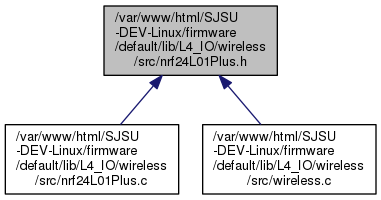

This graph shows which files directly or indirectly include this file:

Macros
#define	NORDIC_EXCHANGE_SPI(byte) ssp0_exchange_byte(byte)

#define	NORDIC_EXCHANGE_MULTI_BYTE(ptr, len) ssp0_exchange_data(ptr, len)

#define	NORDIC_LOCK_SPI()

#define	NORDIC_UNLOCK_SPI()

#define	NORDIC_DELAY_US(us) delay_us(us)

#define	NORDIC_CS_ENABLE() board_io_nordic_cs()

#define	NORDIC_CS_DISABLE() board_io_nordic_ds()

#define	NORDIC_CE_HIGH() board_io_nordic_ce_high()

#define	NORDIC_CE_LOW() board_io_nordic_ce_low()

#define	NORDIC_INT_SIGNAL() (!board_io_nordic_irq_sig()) /* Signal is active low */

Functions
void	nordic_init (unsigned char payload, unsigned short mhz, unsigned short bitrate_kbps)

bool	nordic_is_air_free ()

void	nordic_rx_to_Stanby1 ()

void	nordic_standby1_to_rx ()

void	nordic_standby1_to_tx_mode1 ()

void	nordic_standby1_to_tx_mode2 ()

void	nordic_tx_mode2_to_standby1_through_power_down ()

bool	nordic_is_tx_fifo_full ()

bool	nordic_is_tx_fifo_empty ()

void	nordic_clear_all_intr_flags ()
	Clears all interrupt flags to de-assert interrupt signal. More...

void	nordic_queue_tx_fifo (char *data, unsigned short length)

void	nordic_mode1_send_single_packet (char *data, unsigned short length)

bool	nordic_is_packet_sent ()

void	nordic_clear_packet_sent_flag ()
	Clears the Tx Packet sent flag. More...

bool	nordic_is_max_retries_reached ()

void	nordic_clear_max_retries_flag ()
	Clears the Max retries reached flag. More...

void	nordic_flush_tx_fifo ()
	Flushes(clears) the TX FIFO Data. More...

bool	nordic_is_packet_available ()

void	nordic_clear_packet_available_flag ()
	Clears the RX Packet Received Flag. More...

char	nordic_read_rx_fifo (char *data, unsigned short length)

void	nordic_flush_rx_fifo ()
	Flushes(clears) the RX FIFO Data. More...

void	nordic_set_intr_signals (bool rx, bool tx, bool maxTransmissions)

char	nordic_get_intr_reg_status (void)

void	nordic_set_crc (unsigned char length)

void	nordic_power_up ()
	Powers up the Nordic Chip. More...

void	nordic_power_down ()
	Powers down the Nordic chip (uses few nano-amps in power-down) More...

void	nordic_set_channel (unsigned short MHz)

void	nordic_set_continous_carrier_transmit (bool enable)
	Enables or disables continuous carrier transmission. More...

void	nordic_set_air_data_rate (unsigned short kbps)

void	nordic_set_power_level (unsigned char powerLevel)

void	nordic_set_auto_transmit_options (unsigned short txDelayUs, unsigned char retries)

char	nordic_get_lost_packet_cnt (bool clear)

char	nordic_get_retransmit_count ()

void	nordic_set_payload_for_pipe (unsigned char pipeNumber, unsigned char payload)

void	nordic_set_addr_width (unsigned short width)

void	nordic_set_tx_address (char *address, unsigned short length)

void	nordic_set_rx_pipe0_addr (char *address, unsigned short length)

void	nordic_set_rx_pipe1_addr (char *address, unsigned short length)

void	nordic_set_auto_ack_for_pipes (bool pipe0, bool pipe1, bool pipe2, bool pipe3, bool pipe4, bool pipe5)

void	nordic_enable_pipes (bool pipe0, bool pipe1, bool pipe2, bool pipe3, bool pipe4, bool pipe5)


void	nordic_set_rx_pipe2_lsb_addr (char address)

void	nordic_set_rx_pipe3_lsb_addr (char address)

void	nordic_set_rx_pipe4_lsb_addr (char address)

void	nordic_set_rx_pipe5_lsb_addr (char address)

Detailed Description

Nordic driver.

Example Code for a Nordic:: // Initialize and send a packet:
nordic_init(32, 2450, 250);
nordic_standby1_to_tx_mode1();
nordic_queue_tx_fifo(arrayData, 32);
nordic_mode1_send_single_packet();
// Wait for packet to be sent
while(!nordic_intr_signal());
while(!nordic_is_tx_fifo_empty());
nordic_clear_packet_sent_flag();
// Optionally switch to RX Mode to receive data:
nordic_standby1_to_rx();
while(!nordic_intr_signal());
if(nordic_is_packet_available()) {
nordic_read_rx_fifo(arrayData, 32);
nordic_clear_packet_available_flag();
}
nordic_rx_to_Stanby1();

Macro Definition Documentation

#define NORDIC_CE_HIGH ( ) board_io_nordic_ce_high()

#define NORDIC_CE_LOW ( ) board_io_nordic_ce_low()

#define NORDIC_CS_DISABLE ( ) board_io_nordic_ds()

#define NORDIC_CS_ENABLE ( ) board_io_nordic_cs()

#define NORDIC_DELAY_US ( us ) delay_us(us)

#define NORDIC_EXCHANGE_MULTI_BYTE	(	ptr,
		len
	)	ssp0_exchange_data(ptr, len)

#define NORDIC_EXCHANGE_SPI ( byte ) ssp0_exchange_byte(byte)

#define NORDIC_INT_SIGNAL ( ) (!board_io_nordic_irq_sig()) /* Signal is active low */

#define NORDIC_LOCK_SPI ( )

#define NORDIC_UNLOCK_SPI ( )

Function Documentation

void nordic_clear_all_intr_flags ( )

Clears all interrupt flags to de-assert interrupt signal.

void nordic_clear_max_retries_flag ( )

Clears the Max retries reached flag.

void nordic_clear_packet_available_flag ( )

Clears the RX Packet Received Flag.

void nordic_clear_packet_sent_flag ( )

Clears the Tx Packet sent flag.

void nordic_enable_pipes	(	bool	pipe0,
		bool	pipe1,
		bool	pipe2,
		bool	pipe3,
		bool	pipe4,
		bool	pipe5
	)

Enables or disables the pipes

Parameters

pipe0,pipe1,pipe2,pipe3,pipe4,pipe5 Set to true, to enable the pipe.

void nordic_flush_rx_fifo ( )

Flushes(clears) the RX FIFO Data.

void nordic_flush_tx_fifo ( )

Flushes(clears) the TX FIFO Data.

char nordic_get_intr_reg_status ( void )

Returns: the interrupt status register (not the interrupt signal).

char nordic_get_lost_packet_cnt ( bool clear )

Gets the total number of lost packets.

Parameters

clear If true, clears the count

Returns: The total lost packets 0-15

char nordic_get_retransmit_count ( )

Gets the total number of retransmissions.

Note: The count is cleared when new transmission starts.

void nordic_init	(	unsigned char	payload,
		unsigned short	mhz,
		unsigned short	bitrate_kbps
	)

Initializes the chip to begin data exchange. Enables only Pipe0, sets default address for the Pipe and disables Enhanced Shockburst.

Parameters

payload	The payload per packet 1-32
mhz	The channel number from 2402-2525
bitrate_kbps	Can only be 250, 1000, or 2000

Postcondition: Rx interrupt is reflected on interrupt signal, but not Tx

bool nordic_is_air_free ( )

Returns: TRUE if the nordic finds that the air is free to send data over the wireless medium

Warning: This hasn't been fully tested.

bool nordic_is_max_retries_reached ( )

Returns: True if max retries reached while transmitting packet in enhanced shockburst mode.

bool nordic_is_packet_available ( )

Returns: True if an RX Packet is available.

bool nordic_is_packet_sent ( )

Returns: True if a TX Packet was sent.

bool nordic_is_tx_fifo_empty ( )

Returns: True if TX FIFO is fully empty.

bool nordic_is_tx_fifo_full ( )

Returns: True if TX FIFO is Full

void nordic_mode1_send_single_packet	(	char *	data,
		unsigned short	length
	)

Sends the data in the Tx FIFO.

Postcondition: Returns back to Standby-1 after sending the data.

void nordic_power_down ( )

Powers down the Nordic chip (uses few nano-amps in power-down)

void nordic_power_up ( )

Powers up the Nordic Chip.

void nordic_queue_tx_fifo	(	char *	data,
		unsigned short	length
	)

Queues Data on the TX Fifo (FIFO can hold 3 Packets)

Precondition: TX Fifo must not be FULL

Parameters

data	The char array data pointer
length	The length of the data

Note: In Tx Mode-2 data is sent automatically. In Tx Mode-1 you must use nordic_mode1_send_single_packet()

char nordic_read_rx_fifo	(	char *	data,
		unsigned short	length
	)

Dequeues Data from the RX Fifo

Precondition: RX Fifo must contain data

Parameters

data	The char array data pointer
length	The length of the data

Returns: The data pipe data was received on (0-5)

void nordic_rx_to_Stanby1 ( )

Puts Nordic from Rx Mode to Standby-1 Mode. Standby-1 Mode can be used to send single Tx Packets and return to Rx easily.

void nordic_set_addr_width ( unsigned short width )

Sets the width of the address.

Parameters

width The address width, must be 3-5

Note: Lower increases data throughput, higher might catch other wireless traffic.

void nordic_set_air_data_rate ( unsigned short kbps )

Sets the over-the-air data-rate

Parameters

kbps	Must be 250, 1000, or 2000

Note: Lower data rate yields longer range, but potentially decreases delivery rate.

void nordic_set_auto_ack_for_pipes	(	bool	pipe0,
		bool	pipe1,
		bool	pipe2,
		bool	pipe3,
		bool	pipe4,
		bool	pipe5
	)

Sets the auto-ack (enhanced shockburst for the pipes)

Parameters

pipe0,pipe1,pipe2,pipe3,pipe4,pipe5 Set to true, to enable auto-ack on the pipe.

void nordic_set_auto_transmit_options	(	unsigned short	txDelayUs,
		unsigned char	retries
	)

Sets the Enhanced Shockburst auto-transmit options

Parameters

txDelayUs	The delay in uS from 250 - 4000 for retransmission
retries	The number of retries 1-15

void nordic_set_channel ( unsigned short MHz )

Sets the Channel Number in Mhz

Warning: Be careful with FCC restricted range!

Parameters

MHz	Must be between 2400 - 2525

void nordic_set_continous_carrier_transmit ( bool enable )

Enables or disables continuous carrier transmission.

void nordic_set_crc ( unsigned char length )

Sets the length of the CRC of over-the-air packets

Parameters

length Must be 0, 1, or 2. Use 0 to disable CRC checking

void nordic_set_intr_signals	(	bool	rx,
		bool	tx,
		bool	maxTransmissions
	)

Sets the triggers that enable the Interrupt Pin

Parameters

rx,tx,maxTransmissions If true, interrupt pin will trigger upon these detections.

Note: These are all enabled by default at power-up

void nordic_set_payload_for_pipe	(	unsigned char	pipeNumber,
		unsigned char	payload
	)

Sets the payload for the pipes.

Parameters

pipeNumber	The pipe number from 0-5
payload	The payload 0-32 (0 means pipe not used)

void nordic_set_power_level ( unsigned char powerLevel )

Sets the power level of the chip

Parameters

powerLevel Must be 0-3 with 3 being the highest

void nordic_set_rx_pipe0_addr	(	char *	address,
		unsigned short	length
	)

Sets the reciver's Pipe 0 Address.

Parameters

address	The char array of address.
length	The length of address, must be same as what was set at nordic_setAddressWidth()

void nordic_set_rx_pipe1_addr	(	char *	address,
		unsigned short	length
	)

Sets the reciver's Pipe 1 Address.

Parameters

address	The char array of address.
length	The length of address, must be same as what was set at nordic_setAddressWidth()

void nordic_set_rx_pipe2_lsb_addr ( char address )

Sets the last byte of the address of Pipe2-Pipe5

Note: The top bytes are the same as Pipe1's address.

Parameters

address The last byte of this pipe's address.

void nordic_set_rx_pipe3_lsb_addr ( char address )

void nordic_set_rx_pipe4_lsb_addr ( char address )

void nordic_set_rx_pipe5_lsb_addr ( char address )

void nordic_set_tx_address	(	char *	address,
		unsigned short	length
	)

Sets the address of the transmitter.

Parameters

address	The char array of address.
length	The length of address, must be same as what was set at nordic_setAddressWidth()

void nordic_standby1_to_rx ( )

Puts Nordic from Standby-1 Mode to Rx Mode.

Note: To change from Rx to Tx mode, you must use nordic_RxTo_Stanby1() first!

void nordic_standby1_to_tx_mode1 ( )

Puts Nordic from Standby-1 Mode to Tx Mode-1.

Note: Tx Mode-1 is recommended for low throughput data transfers with Software ACKs since this mode can more easily transition to Rx Mode.

void nordic_standby1_to_tx_mode2 ( )

Puts Nordic from Standby-1 Mode to Tx Mode-2

Note: Tx Mode-2 is recommended for high throughput data transfers since this mode can send multiple packets in "Tx Mode" without going to Standby. The only compromise is that you must use nordic_TxMode2_toStandby1_throughPowerDown() to transition back to Rx. Also, Nordic uses more power in this mode compared to Mode-1.

void nordic_tx_mode2_to_standby1_through_power_down ( )

This transitions from Tx Mode-2 to Standby-1 without sending a packet. This powers-down nordic, then powers it up, which takes about 150uS
