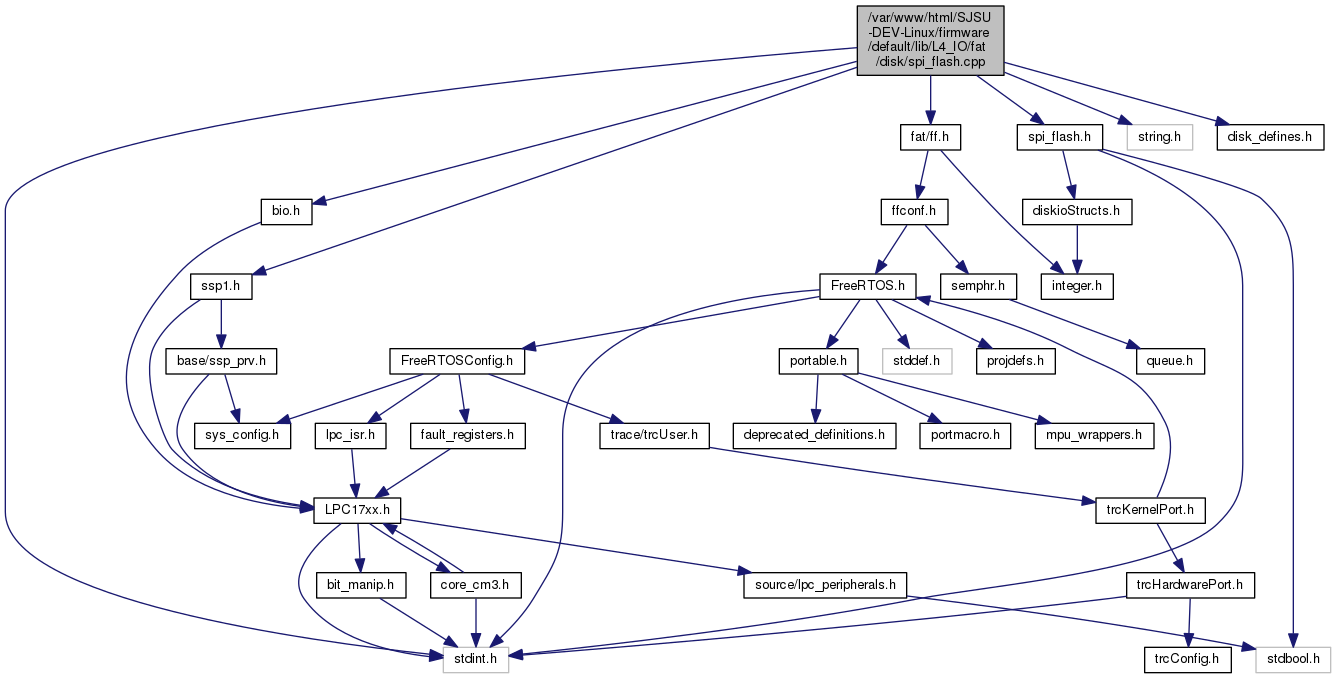

Include dependency graph for spi_flash.cpp:

Macros
#define	CHIP_SELECT_OP()

#define	FLASH_MANUFACTURER_ID (0x1F)
	This should match BYTE #1 of manufacturer and device ID information. More...

#define	FLASH_SECTOR_SIZE (512)
	Minimum sector size that works with FATFS (do not change this) More...

#define	FLASH_PAGENUM_BIT_OFFSET 9


#define	FLASH_PAGESIZE_256 256
	Page size defines. We support 256-528 byte page size. Do not change these. More...

#define	FLASH_PAGESIZE_512 512

#define	FLASH_PAGESIZE_264 264

#define	FLASH_PAGESIZE_528 528

Typedefs
typedef void(*	flash_io_func_t) (uint8_t *data, const uint32_t addr, const uint32_t size)
	Function pointer of I/O operation. More...

Enumerations
enum	flash_opcode_t { opcode_status_reg = 0xD7, opcode_get_sig = 0x9F, opcode_read_continous = 0xE8, opcode_read_cont_lowfreq = 0x03, opcode_page_erase = 0x81, opcode_prog_thru_buffer1 = 0x82, opcode_write_buffer1 = 0x84, opcode_buffer1_to_mem_no_builtin_erase = 0x88, opcode_read_security_reg = 0x77, opcode_write_security_reg = 0x9B }
	Flash device opcodes. More...

enum	flash_cap_t { flash_cap_invalid = 0, flash_cap_8mbit = 0x25, flash_cap_16mbit = 0x26, flash_cap_32mbit = 0x27, flash_cap_64mbit = 0x28, flash_cap_first_valid = flash_cap_8mbit, flash_cap_last_valid = flash_cap_64mbit }
	This should match BYTE #2 of manufacturer and device ID information. More...

Functions
DSTATUS	flash_initialize ()

DRESULT	flash_read_sectors (unsigned char *pData, int sectorNum, int sectorCount)

DRESULT	flash_write_sectors (unsigned char *pData, int sectorNum, int sectorCount)

DRESULT	flash_ioctl (BYTE ctrl, void *buff)

void	flash_write_permanent_id (char *id_64bytes)

void	flash_read_permanent_id (char *id_64bytes)

uint32_t	flash_get_page_count (void)

uint32_t	flash_get_page_size (void)

bool	flash_supports_metadata (void)

uint32_t	flash_get_page_write_count (uint32_t page_number)

void	flash_chip_erase (void)

Detailed Description

This file supports Adesto Flash (formerly Atmel data flash) It should work with the following part numbers : 8mbit : AT45DB081E 16mbit : AT45DB161E 32mbit : AT45DB321E 64mbit : AT45DB641E

Any other model will also work as long as the page size or the minimum size we can program is between 256 - 528 inclusively.

Macro Definition Documentation

#define CHIP_SELECT_OP ( )

Value:

for(uint8_t ___i = board_io_flash_cs();\
                                         ___i; \
                                         ___i = (board_io_flash_ds() || board_io_flash_ds() || board_io_flash_ds()))

Macro to select and deselect SPI device during an operation. When we run in high frequency (fast CPU clock), we need to make sure there is at least 50ns difference between chip-selects, so we issue board_io_flash_ds() multiple times on purpose

#define FLASH_MANUFACTURER_ID (0x1F)

This should match BYTE #1 of manufacturer and device ID information.

#define FLASH_PAGENUM_BIT_OFFSET 9

Bit number for specifying flash page offset when using non-standard page-size

Example Page read/write with 264 bytes or 528 bytes: 3 address bytes : | 23:16 | 15:8 | 7:0 |

First 3 bits are don't care. Next 12-bits specify page number. Last 9 specify byte offset.

#define FLASH_PAGESIZE_256 256

Page size defines. We support 256-528 byte page size. Do not change these.

#define FLASH_PAGESIZE_264 264

#define FLASH_PAGESIZE_512 512

#define FLASH_PAGESIZE_528 528

#define FLASH_SECTOR_SIZE (512)

Minimum sector size that works with FATFS (do not change this)

Typedef Documentation

typedef void(* flash_io_func_t) (uint8_t *data, const uint32_t addr, const uint32_t size)

Function pointer of I/O operation.

Enumeration Type Documentation

enum flash_cap_t

This should match BYTE #2 of manufacturer and device ID information.

Enumerator
flash_cap_invalid
flash_cap_8mbit
flash_cap_16mbit
flash_cap_32mbit
flash_cap_64mbit
flash_cap_first_valid	SPI Flash signature must fall in between the capacity IDs for the initialization to be considered successful
flash_cap_last_valid

enum flash_opcode_t

Flash device opcodes.

Enumerator
opcode_status_reg
opcode_get_sig
opcode_read_continous	Works up to 66Mhz but requires 4 dummy bytes.
opcode_read_cont_lowfreq	Works up to 33Mhz.
opcode_page_erase	Memory write options: Easiest way to write a page is using opcode_prog_thru_buffer1. Efficient way to write a page (if flash is busy) is to write buffer 1 (while busy) then perform page erase and buffer1 to memory without built-in-erase
opcode_prog_thru_buffer1
opcode_write_buffer1
opcode_buffer1_to_mem_no_builtin_erase
opcode_read_security_reg
opcode_write_security_reg

Function Documentation

void flash_chip_erase ( void )

This will ERASE the entire chip, including the meta-data!! This can take several seconds to perform the chip erase...

uint32_t flash_get_page_count ( void )

Flash memory metadata functions If the flash memory contains additional space for each page, then each time a page is written, we also write its write-counter value. You can then retrieve the page write count values by the page number.

uint32_t flash_get_page_size ( void )

uint32_t flash_get_page_write_count ( uint32_t page_number )

Warning: DO NOT USE THIS FUNCTION WITHOUT THE SPI SEMAPHORE!!!

DSTATUS flash_initialize ( )

Initializes the Flash Memory

DRESULT flash_ioctl	(	BYTE	ctrl,
		void *	buff
	)

Gets control information from this flash memory drive, such as sector count, sector size

Parameters

ctrl	The type of information to get
buff	The pointer to save the requested information to

void flash_read_permanent_id ( char * id_64bytes )

Reads the permanent ID programmed into the SPI flash

Warning: DO NOT USE THIS FUNCTION WITHOUT THE SPI SEMAPHORE!!!

DRESULT flash_read_sectors	(	unsigned char *	pData,
		int	sectorNum,
		int	sectorCount
	)

Reads a sector from the Flash Memory

Parameters

pData	The pointer to the data to save the read
sectorNum	The sector number to read with each sector being 512 bytes
sectorCount	The number of sectors to read

bool flash_supports_metadata ( void )

void flash_write_permanent_id ( char * id_64bytes )

Writes a permanent ID on the SPI Flash

Warning: THIS CAN ONLY BE DONE ONCE IN A LIFETIME OF THE SPI FLASH; DO NOT USE THIS FUNCTION WITHOUT THE SPI SEMAPHORE!!!

DRESULT flash_write_sectors	(	unsigned char *	pData,
		int	sectorNum,
		int	sectorCount
	)

Writes a sector to the Flash Memory

Parameters

pData	The pointer to the data to write
sectorNum	The sector number to write with each sector being 512 bytes
sectorCount	The number of sectors to write
