eint.c File Reference

#include <stdlib.h>
#include "eint.h"
#include "FreeRTOS.h"
#include "lpc_isr.h"

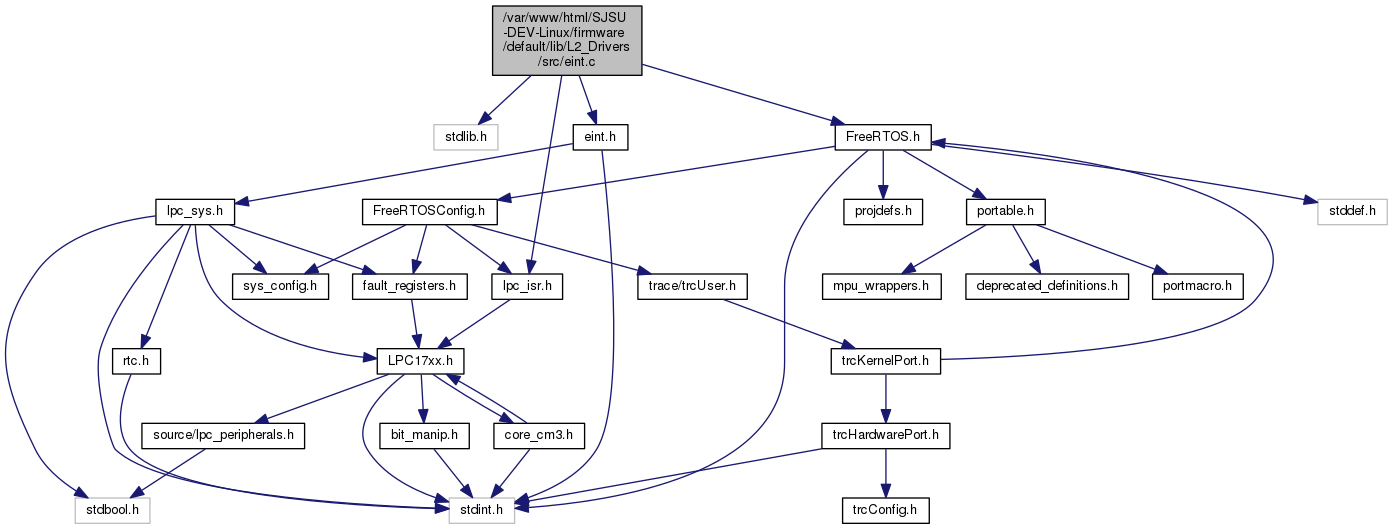

Include dependency graph for eint.c:

Data Structures
struct	eint3_entry
	Linked list structure of EINTs (External interrupts) More...

Typedefs
typedef struct eint3_entry	eint3_entry_t
	Linked list structure of EINTs (External interrupts) More...

Functions
void	EINT3_IRQHandler (void)
	Actual ISR Handler (mapped to startup file's interrupt vector function name) More...
void	eint3_enable_port0 (uint8_t pin_num, eint_intr_t type, void_func_t func)
void	eint3_enable_port2 (uint8_t pin_num, eint_intr_t type, void_func_t func)

Typedef Documentation

typedef struct eint3_entry eint3_entry_t

Linked list structure of EINTs (External interrupts)

Function Documentation

void eint3_enable_port0	(	uint8_t	pin_num,
		eint_intr_t	type,
		void_func_t	func
	)

Enables the callback when the interrupt occurs. The entry added last is checked first if multiple interrupts occur at the same time. Each call will allocate 16 bytes for the interrupt service entry.

Note

EINT3 shares interrupt with Port0 and Port2

Parameters

[in]	pin_num	The pin number from 0-31.
[in]	type	The type of interrupt.
[in]	func	The callback function.

void eint3_enable_port2	(	uint8_t	pin_num,
		eint_intr_t	type,
		void_func_t	func
	)

Enables the callback when the interrupt occurs. The entry added last is checked first if multiple interrupts occur at the same time. Each call will allocate 16 bytes for the interrupt service entry.

Note

EINT3 shares interrupt with Port0 and Port2

Parameters

[in]	pin_num	The pin number from 0-31.
[in]	type	The type of interrupt.
[in]	func	The callback function.

void EINT3_IRQHandler

(

void

)

Actual ISR Handler (mapped to startup file's interrupt vector function name)
