Inheritance diagram for LED_Display:

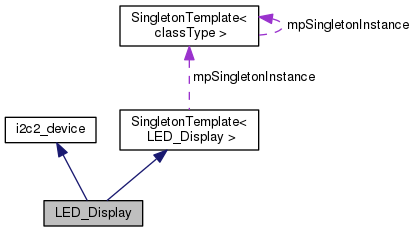

Collaboration diagram for LED_Display:

Public Member Functions
bool	init ()
	Initializes this device,. More...

void	clear ()

void	setNumber (char num)


void	setLeftDigit (char alpha)

void	setRightDigit (char alpha)

Friends
class	SingletonTemplate< LED_Display >
	Friend class used for Singleton Template. More...

Additional Inherited Members
Static Public Member Functions inherited from SingletonTemplate< LED_Display >
static LED_Display &	getInstance ()
	Public member to get instance of this SINGLETON class. More...

Protected Member Functions inherited from i2c2_device
	i2c2_device (uint8_t addr)
	Constructor of this base class that takes addr as a parameter. More...

uint8_t	readReg (unsigned char reg)

void	writeReg (unsigned char reg, unsigned char data)
	Writes a register of this device. More...

bool	checkDeviceResponse ()

uint16_t	get16BitRegister (unsigned char reg)

Protected Member Functions inherited from SingletonTemplate< LED_Display >
	SingletonTemplate ()

Static Protected Attributes inherited from SingletonTemplate< LED_Display >
static SingletonTemplate *	mpSingletonInstance

Detailed Description

LED Display class to manipulate the on-board 2 digit LED display

Member Function Documentation

void LED_Display::clear ( void )

Clears the display

bool LED_Display::init ( void )

Initializes this device,.

void LED_Display::setLeftDigit ( char alpha )

Single Digit Manipulation Functions Sets the left and right alpha-numeric display individually

Parameters

alpha The alpha to set, such as "B" or "9"

void LED_Display::setNumber ( char num )

Sets the number on LED display

Parameters

num	A number less than 100

void LED_Display::setRightDigit ( char alpha )

friend

Friend class used for Singleton Template.

The documentation for this class was generated from the following files:
