#include <LED.hpp>

Inheritance diagram for LED:

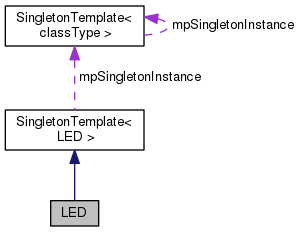

Collaboration diagram for LED:

Public Member Functions
bool	init ()
	Initializes this device,. More...

void	on (uint8_t ledNum)
	Turns ON LED. More...

void	off (uint8_t ledNum)
	Turns OFF LED. More...

void	set (uint8_t ledNum, bool on)
	Turns on/off led based on. More...

void	toggle (uint8_t ledNum)
	Toggles the LED. More...

void	setAll (uint8_t value)
	Sets 8-bit value of 8 LEDs; 1 bit per LED. More...

uint8_t	getValues (void) const
	Get the LED bit values currently set. More...

Friends
class	SingletonTemplate< LED >
	Friend class used for Singleton Template. More...

Additional Inherited Members
Static Public Member Functions inherited from SingletonTemplate< LED >
static LED &	getInstance ()
	Public member to get instance of this SINGLETON class. More...

Protected Member Functions inherited from SingletonTemplate< LED >
	SingletonTemplate ()

Static Protected Attributes inherited from SingletonTemplate< LED >
static SingletonTemplate *	mpSingletonInstance

Detailed Description

LED class used to control the Board's 8 output LEDs

Member Function Documentation

uint8_t LED::getValues ( void ) const

Get the LED bit values currently set.

bool LED::init ( void )

Initializes this device,.

void LED::off ( uint8_t ledNum )

Turns OFF LED.

Parameters

ledNum The LED # from 1-4

void LED::on ( uint8_t ledNum )

Turns ON LED.

Parameters

ledNum The LED # from 1-4

Turns on/off led based on.

Parameters

on

void LED::setAll ( uint8_t value )

Sets 8-bit value of 8 LEDs; 1 bit per LED.

void LED::toggle ( uint8_t ledNum )

Toggles the LED.

friend

Friend class used for Singleton Template.

The documentation for this class was generated from the following files:
