fault_registers.h File Reference

This file simply provides registers that are used to detect faults. These registers should be defined to a RAM region not used by the program. More...

#include "LPC17xx.h"

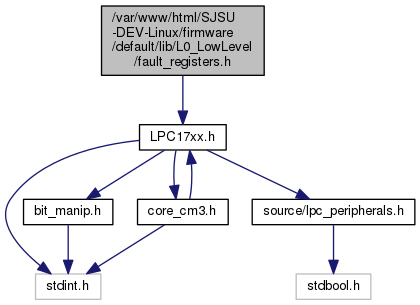

Include dependency graph for fault_registers.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	FAULT_PRESENT_VAL   0xDEADBEEF
	Value loaded to FAULT_EXISTS upon a crash. More...
#define	FAULT_LAST_RUNNING_TASK_NAME   LPC_RTC->GPREG0
	FreeRTOS crash info register. More...
#define	FAULT_EXISTS   LPC_RTC->GPREG1
	Fault flag is stored here. More...
#define	FAULT_PC   LPC_RTC->GPREG2
	CPU PC counter after the crash. More...
#define	FAULT_LR   LPC_RTC->GPREG3
	CPU Link register after the crash. More...
#define	FAULT_PSR   LPC_RTC->GPREG4
	CPU PSR register. More...

Detailed Description

This file simply provides registers that are used to detect faults. These registers should be defined to a RAM region not used by the program.

Macro Definition Documentation

#define FAULT_EXISTS   LPC_RTC->GPREG1

Fault flag is stored here.

#define FAULT_LAST_RUNNING_TASK_NAME   LPC_RTC->GPREG0

FreeRTOS crash info register.

#define FAULT_LR   LPC_RTC->GPREG3

CPU Link register after the crash.

#define FAULT_PC   LPC_RTC->GPREG2

CPU PC counter after the crash.

#define FAULT_PRESENT_VAL   0xDEADBEEF

Value loaded to FAULT_EXISTS upon a crash.

#define FAULT_PSR   LPC_RTC->GPREG4

CPU PSR register.
