#include <IR_sensor.hpp>

Inheritance diagram for IR_Sensor:

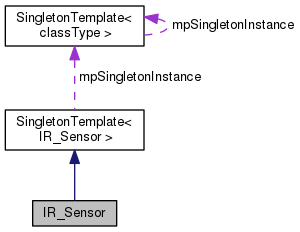

Collaboration diagram for IR_Sensor:

Public Member Functions
bool	init ()
	Initializes this device,. More...

bool	isIRCodeReceived ()

uint32_t	getLastIRCode ()


void	storeIrCode (uint32_t)

void	decodeIrCode (void)

Friends
class	SingletonTemplate< IR_Sensor >
	Friend class used for Singleton Template. More...

Additional Inherited Members
Static Public Member Functions inherited from SingletonTemplate< IR_Sensor >
static IR_Sensor &	getInstance ()
	Public member to get instance of this SINGLETON class. More...

Protected Member Functions inherited from SingletonTemplate< IR_Sensor >
	SingletonTemplate ()

Static Protected Attributes inherited from SingletonTemplate< IR_Sensor >
static SingletonTemplate *	mpSingletonInstance

Detailed Description

IR Sensor class used to get signals from the on-board IR Sensor This sensor can decode a remote's IR signals, such as a TV remote control.

To make sure no decoded signals are over-written, or you do not get a decoded signal that is very obsolete, the user should periodically check isIRCodeReceived() every 50ms, and buffer signals externally.

If a signal is decoded, getLastIRCode() will provide it, and clear out the buffer to receive future signal. If getLastIRCode() is not called regularly, it is possible that this may return an older signal, even if it was many hours ago.

Member Function Documentation

void IR_Sensor::decodeIrCode ( void )

First falling edge value should indicate binary 0. So anything higher than 50% of this value is considered binary 1.

uint32_t IR_Sensor::getLastIRCode ( )

Returns: The last IR signal that was decoded or 0 if nothing was decoded

bool IR_Sensor::init ( void )

Initializes this device,.

Returns: true if successful

IR Sensor is attached to P1.18 - CAP1.0, so it needs TIMER1 to capture the times on P1.18

bool IR_Sensor::isIRCodeReceived ( )

Returns: true if an IR signal was decoded and is available to read

void IR_Sensor::storeIrCode ( uint32_t value )

Don't use these functions

Friends And Related Function Documentation

friend class SingletonTemplate< IR_Sensor >

friend

Friend class used for Singleton Template.

The documentation for this class was generated from the following files:

/var/www/html/SJSU-DEV-Linux/firmware/default/lib/L4_IO/IR_sensor.hpp
/var/www/html/SJSU-DEV-Linux/firmware/default/lib/L4_IO/src/io_source.cpp
