ff.h File Reference
#include "integer.h"
#include "ffconf.h"

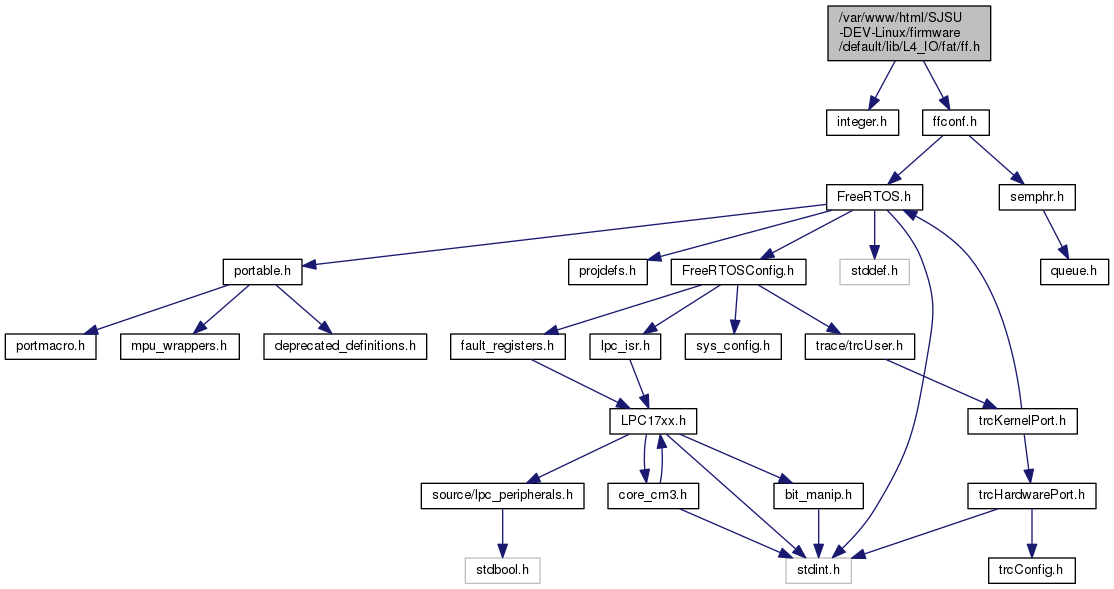

Include dependency graph for ff.h:

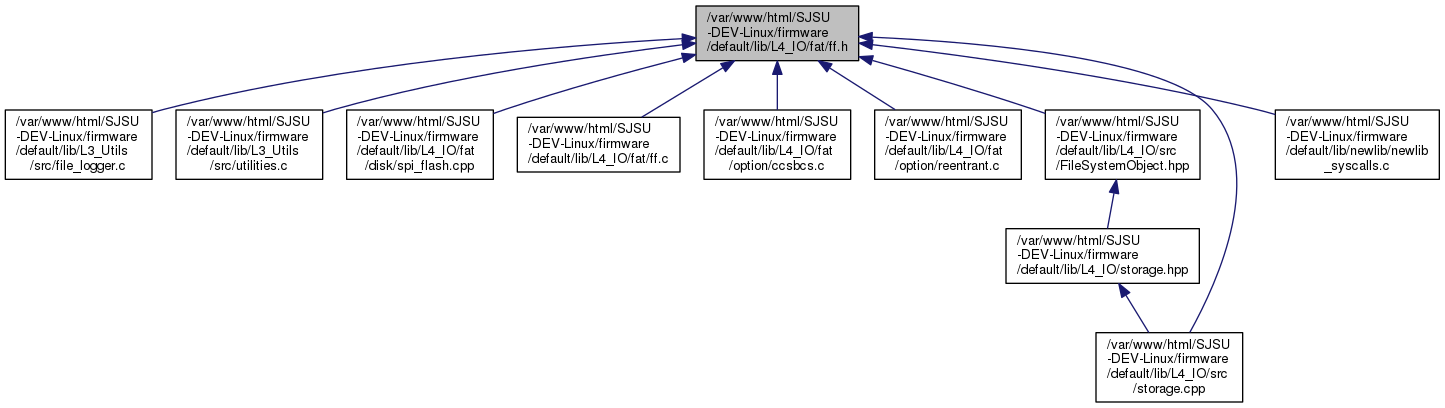

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  FATFS

struct  FIL

struct  DIR

struct  FILINFO


Macros

#define _FATFS   8051 /* Revision ID */

#define LD2PD(vol)   (BYTE)(vol) /* Each logical drive is bound to the same physical drive number */

#define LD2PT(vol)   0 /* Find first valid partition or in SFD */

#define _T(x)   x

#define _TEXT(x)   x

#define f_eof(fp)   (((fp)->fptr == (fp)->fsize) ? 1 : 0)

#define f_error(fp)   ((fp)->err)

#define f_tell(fp)   ((fp)->fptr)

#define f_size(fp)   ((fp)->fsize)

#define EOF   (-1)

#define FA_READ   0x01

#define FA_OPEN_EXISTING   0x00

#define FA_WRITE   0x02

#define FA_CREATE_NEW   0x04

#define FA_CREATE_ALWAYS   0x08

#define FA_OPEN_ALWAYS   0x10

#define FA__WRITTEN   0x20

#define FA__DIRTY   0x40

#define FS_FAT12   1

#define FS_FAT16   2

#define FS_FAT32   3

#define AM_RDO   0x01 /* Read only */

#define AM_HID   0x02 /* Hidden */

#define AM_SYS   0x04 /* System */

#define AM_VOL   0x08 /* Volume label */

#define AM_LFN   0x0F /* LFN entry */

#define AM_DIR   0x10 /* Directory */

#define AM_ARC   0x20 /* Archive */

#define AM_MASK   0x3F /* Mask of defined bits */

#define CREATE_LINKMAP   0xFFFFFFFF


Typedefs

typedef char TCHAR


Enumerations

enum  FRESULT {
  FR_OK = 0, FR_DISK_ERR, FR_INT_ERR, FR_NOT_READY,
  FR_NO_FILE, FR_NO_PATH, FR_INVALID_NAME, FR_DENIED,
  FR_EXIST, FR_INVALID_OBJECT, FR_WRITE_PROTECTED, FR_INVALID_DRIVE,
  FR_NOT_ENABLED, FR_NO_FILESYSTEM, FR_MKFS_ABORTED, FR_TIMEOUT,
  FR_LOCKED, FR_NOT_ENOUGH_CORE, FR_TOO_MANY_OPEN_FILES, FR_INVALID_PARAMETER
}


Functions

FRESULT f_open (FIL *fp, const TCHAR *path, BYTE mode)

FRESULT f_close (FIL *fp)

FRESULT f_read (FIL *fp, void *buff, UINT btr, UINT *br)

FRESULT f_write (FIL *fp, const void *buff, UINT btw, UINT *bw)

FRESULT f_forward (FIL *fp, UINT(*func)(const BYTE *, UINT), UINT btf, UINT *bf)

FRESULT f_lseek (FIL *fp, DWORD ofs)

FRESULT f_truncate (FIL *fp)

FRESULT f_sync (FIL *fp)

FRESULT f_opendir (DIR *dp, const TCHAR *path)

FRESULT f_closedir (DIR *dp)

FRESULT f_readdir (DIR *dp, FILINFO *fno)

FRESULT f_mkdir (const TCHAR *path)

FRESULT f_unlink (const TCHAR *path)

FRESULT f_rename (const TCHAR *path_old, const TCHAR *path_new)

FRESULT f_stat (const TCHAR *path, FILINFO *fno)

FRESULT f_chmod (const TCHAR *path, BYTE value, BYTE mask)

FRESULT f_utime (const TCHAR *path, const FILINFO *fno)

FRESULT f_chdir (const TCHAR *path)

FRESULT f_chdrive (const TCHAR *path)

FRESULT f_getcwd (TCHAR *buff, UINT len)

FRESULT f_getfree (const TCHAR *path, DWORD *nclst, FATFS **fatfs)

FRESULT f_getlabel (const TCHAR *path, TCHAR *label, DWORD *vsn)

FRESULT f_setlabel (const TCHAR *label)

FRESULT f_mount (FATFS *fs, const TCHAR *path, BYTE opt)

FRESULT f_mkfs (const TCHAR *path, BYTE sfd, UINT au)

FRESULT f_fdisk (BYTE pdrv, const DWORD szt[], void *work)

int f_putc (TCHAR c, FIL *fp)

int f_puts (const TCHAR *str, FIL *cp)

int f_printf (FIL *fp, const TCHAR *str,...)

TCHAR * f_gets (TCHAR *buff, int len, FIL *fp)

DWORD get_fattime (void)

WCHAR ff_convert (WCHAR chr, UINT dir)

WCHAR ff_wtoupper (WCHAR chr)

int ff_cre_syncobj (BYTE vol, _SYNC_t *sobj)

int ff_req_grant (_SYNC_t sobj)

void ff_rel_grant (_SYNC_t sobj)

int ff_del_syncobj (_SYNC_t sobj)


Macro Definition Documentation

#define _FATFS   8051 /* Revision ID */
#define _T (   x)    x
#define _TEXT (   x)    x
#define AM_ARC   0x20 /* Archive */
#define AM_DIR   0x10 /* Directory */
#define AM_HID   0x02 /* Hidden */
#define AM_LFN   0x0F /* LFN entry */
#define AM_MASK   0x3F /* Mask of defined bits */
#define AM_RDO   0x01 /* Read only */
#define AM_SYS   0x04 /* System */
#define AM_VOL   0x08 /* Volume label */
#define CREATE_LINKMAP   0xFFFFFFFF
#define EOF   (-1)
#define f_eof (   fp)    (((fp)->fptr == (fp)->fsize) ? 1 : 0)
#define f_error (   fp)    ((fp)->err)
#define f_size (   fp)    ((fp)->fsize)
#define f_tell (   fp)    ((fp)->fptr)
#define FA__DIRTY   0x40
#define FA__WRITTEN   0x20
#define FA_CREATE_ALWAYS   0x08
#define FA_CREATE_NEW   0x04
#define FA_OPEN_ALWAYS   0x10
#define FA_OPEN_EXISTING   0x00
#define FA_READ   0x01
#define FA_WRITE   0x02
#define FS_FAT12   1
#define FS_FAT16   2
#define FS_FAT32   3
#define LD2PD (   vol)    (BYTE)(vol) /* Each logical drive is bound to the same physical drive number */
#define LD2PT (   vol)    0 /* Find first valid partition or in SFD */

Typedef Documentation

typedef char TCHAR

Enumeration Type Documentation

enum FRESULT
Enumerator
FR_OK
FR_DISK_ERR
FR_INT_ERR
FR_NOT_READY
FR_NO_FILE
FR_NO_PATH
FR_INVALID_NAME
FR_DENIED
FR_EXIST
FR_INVALID_OBJECT
FR_WRITE_PROTECTED
FR_INVALID_DRIVE
FR_NOT_ENABLED
FR_NO_FILESYSTEM
FR_MKFS_ABORTED
FR_TIMEOUT
FR_LOCKED
FR_NOT_ENOUGH_CORE
FR_TOO_MANY_OPEN_FILES
FR_INVALID_PARAMETER

Function Documentation

FRESULT f_chdir ( const TCHAR *  path)
FRESULT f_chdrive ( const TCHAR *  path)
FRESULT f_chmod ( const TCHAR *  path,
BYTE  value,
BYTE  mask
)
FRESULT f_close ( FIL *  fp)
FRESULT f_closedir ( DIR *  dp)
FRESULT f_fdisk ( BYTE  pdrv,
const DWORD  szt[],
void *  work
)
FRESULT f_forward ( FIL *  fp,
UINT(*)(const BYTE *, UINT)  func,
UINT  btf,
UINT *  bf
)
FRESULT f_getcwd ( TCHAR *  buff,
UINT  len
)
FRESULT f_getfree ( const TCHAR *  path,
DWORD *  nclst,
FATFS **  fatfs
)
FRESULT f_getlabel ( const TCHAR *  path,
TCHAR *  label,
DWORD *  vsn
)
TCHAR* f_gets ( TCHAR *  buff,
int  len,
FIL *  fp
)
FRESULT f_lseek ( FIL *  fp,
DWORD  ofs
)
FRESULT f_mkdir ( const TCHAR *  path)
FRESULT f_mkfs ( const TCHAR *  path,
BYTE  sfd,
UINT  au
)
FRESULT f_mount ( FATFS *  fs,
const TCHAR *  path,
BYTE  opt
)
FRESULT f_open ( FIL *  fp,
const TCHAR *  path,
BYTE  mode
)
FRESULT f_opendir ( DIR *  dp,
const TCHAR *  path
)
int f_printf ( FIL *  fp,
const TCHAR *  str,
  ...
)
int f_putc ( TCHAR  c,
FIL *  fp
)
int f_puts ( const TCHAR *  str,
FIL *  cp
)
FRESULT f_read ( FIL *  fp,
void *  buff,
UINT  btr,
UINT *  br
)
FRESULT f_readdir ( DIR *  dp,
FILINFO *  fno
)
FRESULT f_rename ( const TCHAR *  path_old,
const TCHAR *  path_new
)
FRESULT f_setlabel ( const TCHAR *  label)
FRESULT f_stat ( const TCHAR *  path,
FILINFO *  fno
)
FRESULT f_sync ( FIL *  fp)
FRESULT f_truncate ( FIL *  fp)
FRESULT f_unlink ( const TCHAR *  path)
FRESULT f_utime ( const TCHAR *  path,
const FILINFO *  fno
)
FRESULT f_write ( FIL *  fp,
const void *  buff,
UINT  btw,
UINT *  bw
)
WCHAR ff_convert ( WCHAR  chr,
UINT  dir
)
int ff_cre_syncobj ( BYTE  vol,
_SYNC_t *  sobj
)
int ff_del_syncobj ( _SYNC_t  sobj)
void ff_rel_grant ( _SYNC_t  sobj)
int ff_req_grant ( _SYNC_t  sobj)
WCHAR ff_wtoupper ( WCHAR  chr)
DWORD get_fattime ( void  )

This function is called by FAT FS System to get system time

Returns
DWORD containing the time structure
