c_tlm_var.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <inttypes.h>
#include "c_tlm_var.h"

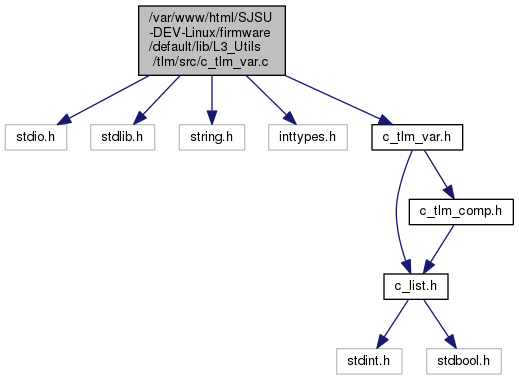

Include dependency graph for c_tlm_var.c:

Macros
#define	tlm_variable_set_value_find_next_token(value)
#define	tlm_variable_print_array(format, var, buffer)

Functions
bool	tlm_variable_register (tlm_component *comp_ptr, const char *name, const void *data_ptr, const uint16_t data_size, const uint16_t arr_size, tlm_type type)
const tlm_reg_var_type *	tlm_variable_get_by_name (tlm_component *comp_ptr, const char *name)
const tlm_reg_var_type *	tlm_variable_get_by_comp_and_name (const char *comp_name, const char *name)
bool	tlm_variable_set_value (const char *comp_name, const char *name, const char *value)
bool	tlm_variable_get_value (const char *comp_name, const char *name, char *buffer, int len)
bool	tlm_variable_print_value (const tlm_reg_var_type *reg_var, char *buffer, int len)

Macro Definition Documentation

#define tlm_variable_print_array	(		format,
			var,
			buffer
	)

Value:

for ( i=1; i < reg_var->elm_arr_size; i++) {                \
            ++var;                                                  \
            size_t curr_len = strlen(buffer);                       \
            snprintf(buffer+curr_len, len-curr_len, format, *data); \
        } do{ } while(0)

#define tlm_variable_set_value_find_next_token

(

value

)

Value:

while (0 != *value) {       \
            if (',' == *value) {    \
                ++value;            \
                break;              \
            } else {                \
                ++value;            \
        }   }

Function Documentation

const tlm_reg_var_type* tlm_variable_get_by_comp_and_name	(	const char *	comp_name,
		const char *	name
	)

Get the data pointer and the size of a previously registered variable. The tlm_reg_var_type structure contains the pointer and the size.

Parameters

comp_name	The component name that contains the variable
name	The registered name of the variable

const tlm_reg_var_type* tlm_variable_get_by_name	(	tlm_component *	comp_ptr,
		const char *	name
	)

Get the data pointer and the size of a previously registered variable. The tlm_reg_var_type structure contains the pointer and the size.

Parameters

comp_ptr	The component pointer that contains the variable
name	The registered name of the variable

bool tlm_variable_get_value	(	const char *	comp_name,
		const char *	name,
		char *	buffer,
		int	len
	)

Gets a value to one of the telemetry variables

Parameters

comp_name	The name of the component (this will be located by name)
name	The name of the registered variable
buffer	The buffer at which to print the data
len	The length of the buffer

bool tlm_variable_print_value	(	const tlm_reg_var_type *	reg_var,
		char *	buffer,
		int	len
	)

Prints the value of the given variable

Parameters

reg_var	A registered variable, possibly obtained from tlm_variable_get_by_name()
buffer	The buffer at which to print the data
len	The length of the buffer

Returns

true upon success

bool tlm_variable_register	(	tlm_component *	comp_ptr,
		const char *	name,
		const void *	data_ptr,
		const uint16_t	data_size,
		const uint16_t	arr_size,
		tlm_type	type
	)

Adds a variable to a component.

Parameters

comp_ptr	The component pointer
name	The name of the variable
data_ptr	The data pointer of the variable
data_size	The size of the variable
arr_size	If not an array, use zero. If registering an array, use the number of elements in the array.
type	The type of the variable.

Returns

true upon success. If memory allocation fails, or if another variable is registered by the same name or same memory pointer, false is returned.

bool tlm_variable_set_value	(	const char *	comp_name,
		const char *	name,
		const char *	value
	)

Sets a value to one of the telemetry variables. This is sort of a back-door way to force a value to the telemetry variable.

Parameters

comp_name	The name of the component (this will be located by name)
name	The name of the registered variable
value	The string value. For example, to set an integer, just pass string value such as "123". To set boolean value, use "true" or "false"
