c_tlm_comp.h File Reference

#include "c_list.h"

Include dependency graph for c_tlm_comp.h:

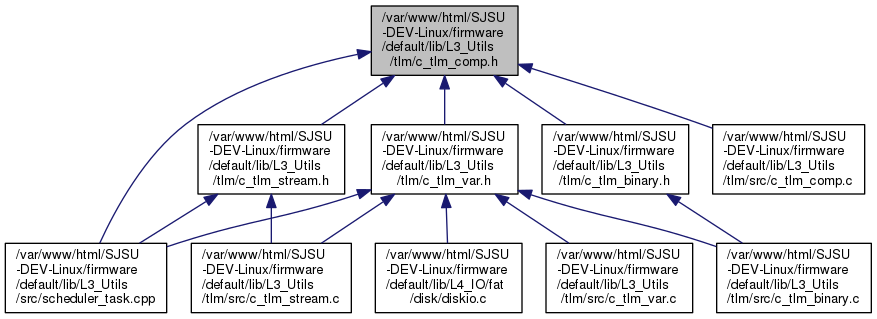

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	tlm_component

Typedefs
typedef void(*	tlm_comp_callback) (tlm_component *comp_ptr, void *arg1, void *arg2)

Functions
tlm_component *	tlm_component_add (const char *name)
tlm_component *	tlm_component_get_by_name (const char *name)
void	tlm_component_for_each (tlm_comp_callback callback, void *arg1, void *arg2)

Detailed Description

This file allows telemetry component registration. Memory locations or variables registered for telemetry are grouped by component. Once registered, the telemetry of these variables can be streamed to a file, network, or just stdio

This file allows to register distinct components by name. Components with duplicate name will fail to be added to the components' list. Once a component is registered, then variables underneath the component can be registered:

See also

c_tlm_var.h

Example registration of a component and a couple of variables :

tlm_component* comp = tlm_component_add("component 1");
int a = 0;
char b = 0;
tlm_variable_register(comp, "a", &a, sizeof(a)));
TLM_REG_VAR(comp, b); // Macro to register variable b

Typedef Documentation

typedef void(* tlm_comp_callback) (tlm_component *comp_ptr, void *arg1, void *arg2)

The callback type for each component

See also

tlm_component_for_each()

Function Documentation

tlm_component* tlm_component_add

(

const char *

name

)

Adds a telemetry component by name.

Parameters

name	The persistent data pointer to the name of the telemetry component.

Returns

tlm_component pointer if this component added successfully, but NULL if another component already exists with this name.

void tlm_component_for_each	(	tlm_comp_callback	callback,
		void *	arg1,
		void *	arg2
	)

Calls your callback function for each telemetry component added to the telemetry components list by tlm_component_add().

Parameters

arg1	arg2 The arguments is passed to your callback like this: callback(tlm_component*, arg1, arg2)

tlm_component* tlm_component_get_by_name

(

const char *

name

)

Get an existing telemetry component by name

Returns

NULL pointer if the component by name was not found
