#include <stdlib.h>
#include <string.h>
#include "FreeRTOS.h"
#include "task.h"
#include "timers.h"
#include "StackMacros.h"
#include "tasks_mod.c.inc"

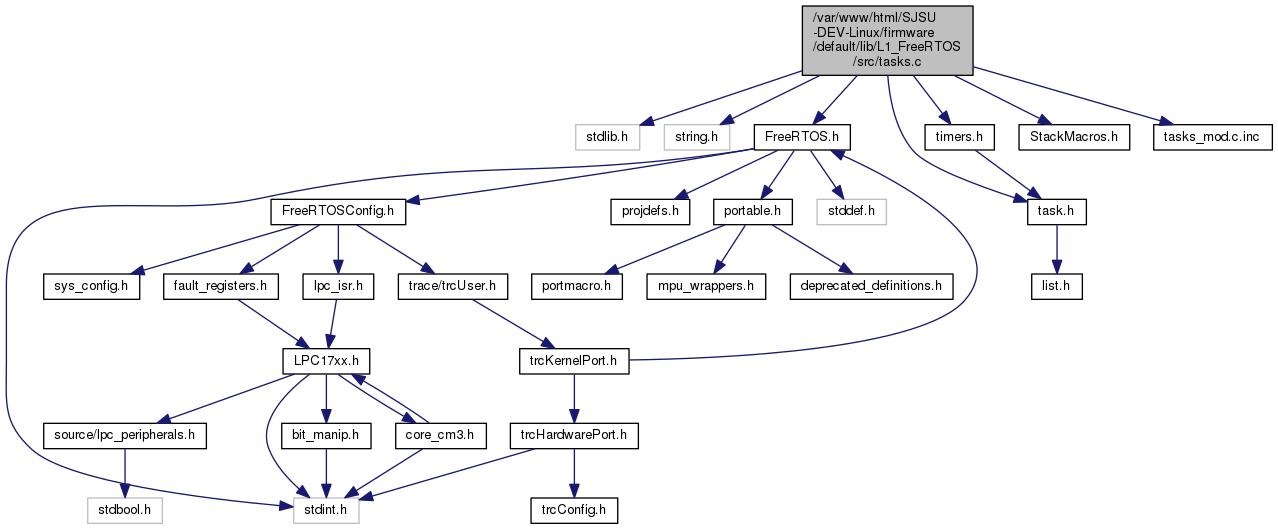

Include dependency graph for tasks.c:

Data Structures
struct	tskTaskControlBlock

Macros
#define	MPU_WRAPPERS_INCLUDED_FROM_API_FILE

#define	taskYIELD_IF_USING_PREEMPTION()

#define	taskNOT_WAITING_NOTIFICATION ( ( uint8_t ) 0 )

#define	taskWAITING_NOTIFICATION ( ( uint8_t ) 1 )

#define	taskNOTIFICATION_RECEIVED ( ( uint8_t ) 2 )

#define	tskSTACK_FILL_BYTE ( 0xa5U )

#define	tskSTATIC_AND_DYNAMIC_ALLOCATION_POSSIBLE ( ( ( configSUPPORT_STATIC_ALLOCATION == 1 ) && ( configSUPPORT_DYNAMIC_ALLOCATION == 1 ) ) \|\| ( portUSING_MPU_WRAPPERS == 1 ) )

#define	tskDYNAMICALLY_ALLOCATED_STACK_AND_TCB ( ( uint8_t ) 0 )

#define	tskSTATICALLY_ALLOCATED_STACK_ONLY ( ( uint8_t ) 1 )

#define	tskSTATICALLY_ALLOCATED_STACK_AND_TCB ( ( uint8_t ) 2 )

#define	tskBLOCKED_CHAR ( 'B' )

#define	tskREADY_CHAR ( 'R' )

#define	tskDELETED_CHAR ( 'D' )

#define	tskSUSPENDED_CHAR ( 'S' )

#define	taskRECORD_READY_PRIORITY(uxPriority)

#define	taskSELECT_HIGHEST_PRIORITY_TASK()

#define	taskRESET_READY_PRIORITY(uxPriority)

#define	portRESET_READY_PRIORITY(uxPriority, uxTopReadyPriority)

#define	taskSWITCH_DELAYED_LISTS()

#define	prvAddTaskToReadyList(pxTCB)

#define	prvGetTCBFromHandle(pxHandle) ( ( ( pxHandle ) == NULL ) ? ( TCB_t * ) pxCurrentTCB : ( TCB_t * ) ( pxHandle ) )

#define	taskEVENT_LIST_ITEM_VALUE_IN_USE 0x80000000UL

Typedefs
typedef struct tskTaskControlBlock	tskTCB

typedef tskTCB	TCB_t

Functions
void	vTaskPrioritySet (TaskHandle_t xTask, UBaseType_t uxNewPriority)

void	vTaskStartScheduler (void)

void	vTaskEndScheduler (void)

void	vTaskSuspendAll (void)

BaseType_t	xTaskResumeAll (void)

TickType_t	xTaskGetTickCount (void)

TickType_t	xTaskGetTickCountFromISR (void)

UBaseType_t	uxTaskGetNumberOfTasks (void)

char *	pcTaskGetName (TaskHandle_t xTaskToQuery)

UBaseType_t	uxTaskGetSystemState (TaskStatus_t const pxTaskStatusArray, const UBaseType_t uxArraySize, uint32_t const pulTotalRunTime)

BaseType_t	xTaskIncrementTick (void)

void	vTaskSwitchContext (void)

void	vTaskPlaceOnEventList (List_t *const pxEventList, const TickType_t xTicksToWait)

void	vTaskPlaceOnUnorderedEventList (List_t *pxEventList, const TickType_t xItemValue, const TickType_t xTicksToWait)

BaseType_t	xTaskRemoveFromEventList (const List_t *const pxEventList)

BaseType_t	xTaskRemoveFromUnorderedEventList (ListItem_t *pxEventListItem, const TickType_t xItemValue)

void	vTaskSetTimeOutState (TimeOut_t *const pxTimeOut)

BaseType_t	xTaskCheckForTimeOut (TimeOut_t const pxTimeOut, TickType_t const pxTicksToWait)

void	vTaskMissedYield (void)

void	vTaskGetInfo (TaskHandle_t xTask, TaskStatus_t *pxTaskStatus, BaseType_t xGetFreeStackSpace, eTaskState eState)

TickType_t	uxTaskResetEventItemValue (void)

Variables
PRIVILEGED_DATA TCB_t *volatile	pxCurrentTCB = NULL

Macro Definition Documentation

#define MPU_WRAPPERS_INCLUDED_FROM_API_FILE

#define portRESET_READY_PRIORITY	(	uxPriority,
		uxTopReadyPriority
	)

#define prvAddTaskToReadyList ( pxTCB )

Value:

traceMOVED_TASK_TO_READY_STATE( pxTCB );                                                        \
	taskRECORD_READY_PRIORITY( ( pxTCB )->uxPriority );                                                \
	vListInsertEnd( &( pxReadyTasksLists[ ( pxTCB )->uxPriority ] ), &( ( pxTCB )->xStateListItem ) ); \
	tracePOST_MOVED_TASK_TO_READY_STATE( pxTCB )

#define prvGetTCBFromHandle ( pxHandle ) ( ( ( pxHandle ) == NULL ) ? ( TCB_t * ) pxCurrentTCB : ( TCB_t * ) ( pxHandle ) )

#define taskEVENT_LIST_ITEM_VALUE_IN_USE 0x80000000UL

#define taskNOT_WAITING_NOTIFICATION ( ( uint8_t ) 0 )

#define taskNOTIFICATION_RECEIVED ( ( uint8_t ) 2 )

#define taskRECORD_READY_PRIORITY ( uxPriority )

Value:

{                                                                                                   \
        if( ( uxPriority ) > uxTopReadyPriority )                                                       \
        {                                                                                               \
            uxTopReadyPriority = ( uxPriority );                                                        \
        }                                                                                               \
    } /* taskRECORD_READY_PRIORITY */

#define taskRESET_READY_PRIORITY ( uxPriority )

#define taskSELECT_HIGHEST_PRIORITY_TASK ( )

Value:

{                                                                                                   \
	UBaseType_t uxTopPriority = uxTopReadyPriority;                                                        \
                                                                                                        \
        /* Find the highest priority queue that contains ready tasks. */                                \
        while( listLIST_IS_EMPTY( &( pxReadyTasksLists[ uxTopPriority ] ) ) )                           \
        {                                                                                               \
			configASSERT( uxTopPriority );                                                               \
            --uxTopPriority;                                                                            \
        }                                                                                               \
                                                                                                        \
        /* listGET_OWNER_OF_NEXT_ENTRY indexes through the list, so the tasks of                        \
        the same priority get an equal share of the processor time. */                                  \
		listGET_OWNER_OF_NEXT_ENTRY( pxCurrentTCB, &( pxReadyTasksLists[ uxTopPriority ] ) );         \
        uxTopReadyPriority = uxTopPriority;                                                             \
    } /* taskSELECT_HIGHEST_PRIORITY_TASK */

#define taskSWITCH_DELAYED_LISTS ( )

Value:

{                                                                                                   \
	List_t *pxTemp;                                                                                    \
                                                                                                    \
    /* The delayed tasks list should be empty when the lists are switched. */                       \
	configASSERT( ( listLIST_IS_EMPTY( pxDelayedTaskList ) ) );                                        \
                                                                                                    \
    pxTemp = pxDelayedTaskList;                                                                     \
    pxDelayedTaskList = pxOverflowDelayedTaskList;                                                  \
    pxOverflowDelayedTaskList = pxTemp;                                                             \
    xNumOfOverflows++;                                                                              \
    prvResetNextTaskUnblockTime();                                                                  \
}

#define taskWAITING_NOTIFICATION ( ( uint8_t ) 1 )

#define taskYIELD_IF_USING_PREEMPTION ( )

#define tskBLOCKED_CHAR ( 'B' )

#define tskDELETED_CHAR ( 'D' )

#define tskDYNAMICALLY_ALLOCATED_STACK_AND_TCB ( ( uint8_t ) 0 )

#define tskREADY_CHAR ( 'R' )

#define tskSTACK_FILL_BYTE ( 0xa5U )

#define tskSTATIC_AND_DYNAMIC_ALLOCATION_POSSIBLE ( ( ( configSUPPORT_STATIC_ALLOCATION == 1 ) && ( configSUPPORT_DYNAMIC_ALLOCATION == 1 ) ) || ( portUSING_MPU_WRAPPERS == 1 ) )

#define tskSTATICALLY_ALLOCATED_STACK_AND_TCB ( ( uint8_t ) 2 )

#define tskSTATICALLY_ALLOCATED_STACK_ONLY ( ( uint8_t ) 1 )

#define tskSUSPENDED_CHAR ( 'S' )

Typedef Documentation

typedef tskTCB TCB_t

typedef struct tskTaskControlBlock tskTCB

Function Documentation

char* pcTaskGetName ( TaskHandle_t xTaskToQuery )

UBaseType_t uxTaskGetNumberOfTasks ( void )

UBaseType_t uxTaskGetSystemState	(	TaskStatus_t *const	pxTaskStatusArray,
		const UBaseType_t	uxArraySize,
		uint32_t *const	pulTotalRunTime
	)

configUSE_TRACE_FACILITY must be defined as 1 in FreeRTOSConfig.h for uxTaskGetSystemState() to be available.

uxTaskGetSystemState() populates an TaskStatus_t structure for each task in the system. TaskStatus_t structures contain, among other things, members for the task handle, task name, task priority, task state, and total amount of run time consumed by the task. See the TaskStatus_t structure definition in this file for the full member list.

NOTE: This function is intended for debugging use only as its use results in the scheduler remaining suspended for an extended period.

Parameters

pxTaskStatusArray	A pointer to an array of TaskStatus_t structures. The array must contain at least one TaskStatus_t structure for each task that is under the control of the RTOS. The number of tasks under the control of the RTOS can be determined using the uxTaskGetNumberOfTasks() API function.
uxArraySize	The size of the array pointed to by the pxTaskStatusArray parameter. The size is specified as the number of indexes in the array, or the number of TaskStatus_t structures contained in the array, not by the number of bytes in the array.
pulTotalRunTime	If configGENERATE_RUN_TIME_STATS is set to 1 in FreeRTOSConfig.h then *pulTotalRunTime is set by uxTaskGetSystemState() to the total run time (as defined by the run time stats clock, see http://www.freertos.org/rtos-run-time-stats.html) since the target booted. pulTotalRunTime can be set to NULL to omit the total run time information.

Returns: The number of TaskStatus_t structures that were populated by uxTaskGetSystemState(). This should equal the number returned by the uxTaskGetNumberOfTasks() API function, but will be zero if the value passed in the uxArraySize parameter was too small.

Example usage:

 // This example demonstrates how a human readable table of run time stats
 // information is generated from raw data provided by uxTaskGetSystemState().
 // The human readable table is written to pcWriteBuffer
 void vTaskGetRunTimeStats( char *pcWriteBuffer )
 {
 TaskStatus_t *pxTaskStatusArray;
 volatile UBaseType_t uxArraySize, x;
 uint32_t ulTotalRunTime, ulStatsAsPercentage;

    // Make sure the write buffer does not contain a string.
    *pcWriteBuffer = 0x00;

    // Take a snapshot of the number of tasks in case it changes while this
    // function is executing.
    uxArraySize = uxTaskGetNumberOfTasks();

    // Allocate a TaskStatus_t structure for each task.  An array could be
    // allocated statically at compile time.
    pxTaskStatusArray = pvPortMalloc( uxArraySize * sizeof( TaskStatus_t ) );

    if( pxTaskStatusArray != NULL )
    {
        // Generate raw status information about each task.
        uxArraySize = uxTaskGetSystemState( pxTaskStatusArray, uxArraySize, &ulTotalRunTime );

        // For percentage calculations.
        ulTotalRunTime /= 100UL;

        // Avoid divide by zero errors.
        if( ulTotalRunTime > 0 )
        {
            // For each populated position in the pxTaskStatusArray array,
            // format the raw data as human readable ASCII data
            for( x = 0; x < uxArraySize; x++ )
            {
                // What percentage of the total run time has the task used?
                // This will always be rounded down to the nearest integer.
                // ulTotalRunTimeDiv100 has already been divided by 100.
                ulStatsAsPercentage = pxTaskStatusArray[ x ].ulRunTimeCounter / ulTotalRunTime;

                if( ulStatsAsPercentage > 0UL )
                {
                    sprintf( pcWriteBuffer, "%s\t\t%lu\t\t%lu%%\r\n", pxTaskStatusArray[ x ].pcTaskName, pxTaskStatusArray[ x ].ulRunTimeCounter, ulStatsAsPercentage );
                }
                else
                {
                    // If the percentage is zero here then the task has
                    // consumed less than 1% of the total run time.
                    sprintf( pcWriteBuffer, "%s\t\t%lu\t\t<1%%\r\n", pxTaskStatusArray[ x ].pcTaskName, pxTaskStatusArray[ x ].ulRunTimeCounter );
                }

                pcWriteBuffer += strlen( ( char * ) pcWriteBuffer );
            }
        }

        // The array is no longer needed, free the memory it consumes.
        vPortFree( pxTaskStatusArray );
    }
 }

TickType_t uxTaskResetEventItemValue ( void )

void vTaskEndScheduler ( void )

void vTaskGetInfo	(	TaskHandle_t	xTask,
		TaskStatus_t *	pxTaskStatus,
		BaseType_t	xGetFreeStackSpace,
		eTaskState	eState
	)

void vTaskMissedYield ( void )

void vTaskPlaceOnEventList	(	List_t *const	pxEventList,
		const TickType_t	xTicksToWait
	)

void vTaskPlaceOnUnorderedEventList	(	List_t *	pxEventList,
		const TickType_t	xItemValue,
		const TickType_t	xTicksToWait
	)

void vTaskPrioritySet	(	TaskHandle_t	xTask,
		UBaseType_t	uxNewPriority
	)

void vTaskSetTimeOutState ( TimeOut_t *const pxTimeOut )

void vTaskStartScheduler ( void )

void vTaskSuspendAll ( void )

void vTaskSwitchContext ( void )

BaseType_t xTaskCheckForTimeOut	(	TimeOut_t *const	pxTimeOut,
		TickType_t *const	pxTicksToWait
	)

TickType_t xTaskGetTickCount ( void )

TickType_t xTaskGetTickCountFromISR ( void )

BaseType_t xTaskIncrementTick ( void )

BaseType_t xTaskRemoveFromEventList ( const List_t *const pxEventList )

BaseType_t xTaskRemoveFromUnorderedEventList	(	ListItem_t *	pxEventListItem,
		const TickType_t	xItemValue
	)

BaseType_t xTaskResumeAll ( void )

Variable Documentation

PRIVILEGED_DATA TCB_t* volatile pxCurrentTCB = NULL
