SPI Flash Driver complaint with FAT-FS System. More...

#include <stdint.h>
#include <stdbool.h>
#include "diskioStructs.h"

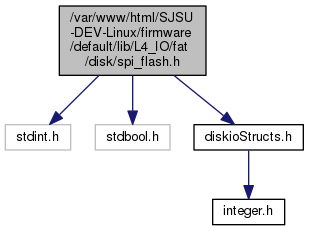

Include dependency graph for spi_flash.h:

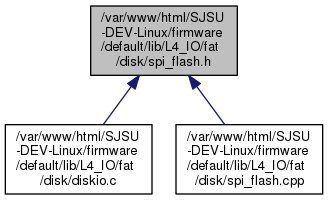

This graph shows which files directly or indirectly include this file:

Functions
DSTATUS	flash_initialize ()

DRESULT	flash_read_sectors (unsigned char *pData, int sectorNum, int sectorCount)

DRESULT	flash_write_sectors (unsigned char *pData, int sectorNum, int sectorCount)

DRESULT	flash_ioctl (BYTE ctrl, void *buff)

void	flash_write_permanent_id (char *id_64bytes)

void	flash_read_permanent_id (char *id_64bytes)

void	flash_chip_erase (void)


uint32_t	flash_get_page_count (void)

uint32_t	flash_get_page_size (void)

bool	flash_supports_metadata (void)

uint32_t	flash_get_page_write_count (uint32_t page_number)

Detailed Description

SPI Flash Driver complaint with FAT-FS System.

Function Documentation

void flash_chip_erase ( void )

This will ERASE the entire chip, including the meta-data!! This can take several seconds to perform the chip erase...

uint32_t flash_get_page_count ( void )

Flash memory metadata functions If the flash memory contains additional space for each page, then each time a page is written, we also write its write-counter value. You can then retrieve the page write count values by the page number.

uint32_t flash_get_page_size ( void )

uint32_t flash_get_page_write_count ( uint32_t page_number )

Warning: DO NOT USE THIS FUNCTION WITHOUT THE SPI SEMAPHORE!!!

DSTATUS flash_initialize ( )

Initializes the Flash Memory

DRESULT flash_ioctl	(	BYTE	ctrl,
		void *	buff
	)

Gets control information from this flash memory drive, such as sector count, sector size

Parameters

ctrl	The type of information to get
buff	The pointer to save the requested information to

void flash_read_permanent_id ( char * id_64bytes )

Reads the permanent ID programmed into the SPI flash

Warning: DO NOT USE THIS FUNCTION WITHOUT THE SPI SEMAPHORE!!!

DRESULT flash_read_sectors	(	unsigned char *	pData,
		int	sectorNum,
		int	sectorCount
	)

Reads a sector from the Flash Memory

Parameters

pData	The pointer to the data to save the read
sectorNum	The sector number to read with each sector being 512 bytes
sectorCount	The number of sectors to read

bool flash_supports_metadata ( void )

void flash_write_permanent_id ( char * id_64bytes )

Writes a permanent ID on the SPI Flash

Warning: THIS CAN ONLY BE DONE ONCE IN A LIFETIME OF THE SPI FLASH; DO NOT USE THIS FUNCTION WITHOUT THE SPI SEMAPHORE!!!

DRESULT flash_write_sectors	(	unsigned char *	pData,
		int	sectorNum,
		int	sectorCount
	)

Writes a sector to the Flash Memory

Parameters

pData	The pointer to the data to write
sectorNum	The sector number to write with each sector being 512 bytes
sectorCount	The number of sectors to write
