event_groups.c File Reference

#include <stdlib.h>
#include "FreeRTOS.h"
#include "task.h"
#include "timers.h"
#include "event_groups.h"

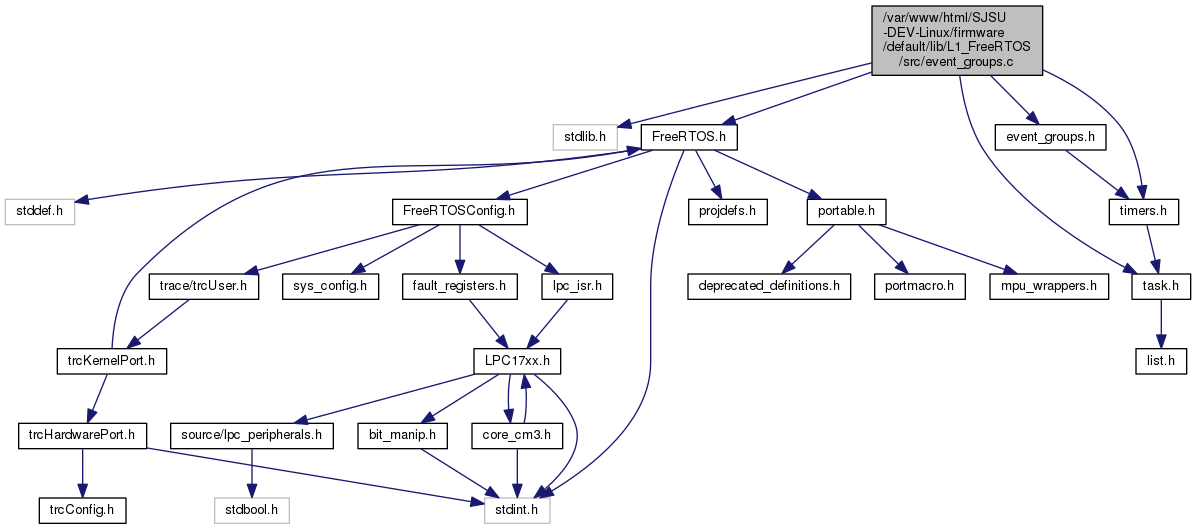

Include dependency graph for event_groups.c:

Data Structures
struct	xEventGroupDefinition

Macros
#define	MPU_WRAPPERS_INCLUDED_FROM_API_FILE
#define	eventCLEAR_EVENTS_ON_EXIT_BIT   0x01000000UL
#define	eventUNBLOCKED_DUE_TO_BIT_SET   0x02000000UL
#define	eventWAIT_FOR_ALL_BITS   0x04000000UL
#define	eventEVENT_BITS_CONTROL_BYTES   0xff000000UL

Typedefs
typedef struct xEventGroupDefinition	EventGroup_t

Functions
EventBits_t	xEventGroupSync (EventGroupHandle_t xEventGroup, const EventBits_t uxBitsToSet, const EventBits_t uxBitsToWaitFor, TickType_t xTicksToWait)
EventBits_t	xEventGroupWaitBits (EventGroupHandle_t xEventGroup, const EventBits_t uxBitsToWaitFor, const BaseType_t xClearOnExit, const BaseType_t xWaitForAllBits, TickType_t xTicksToWait)
EventBits_t	xEventGroupClearBits (EventGroupHandle_t xEventGroup, const EventBits_t uxBitsToClear)
EventBits_t	xEventGroupGetBitsFromISR (EventGroupHandle_t xEventGroup)
EventBits_t	xEventGroupSetBits (EventGroupHandle_t xEventGroup, const EventBits_t uxBitsToSet)
void	vEventGroupDelete (EventGroupHandle_t xEventGroup)
void	vEventGroupSetBitsCallback (void *pvEventGroup, const uint32_t ulBitsToSet)
void	vEventGroupClearBitsCallback (void *pvEventGroup, const uint32_t ulBitsToClear)

Macro Definition Documentation

#define eventCLEAR_EVENTS_ON_EXIT_BIT   0x01000000UL

#define eventEVENT_BITS_CONTROL_BYTES   0xff000000UL

#define eventUNBLOCKED_DUE_TO_BIT_SET   0x02000000UL

#define eventWAIT_FOR_ALL_BITS   0x04000000UL

#define MPU_WRAPPERS_INCLUDED_FROM_API_FILE

Typedef Documentation

typedef struct xEventGroupDefinition EventGroup_t

Function Documentation

void vEventGroupClearBitsCallback	(	void *	pvEventGroup,
		const uint32_t	ulBitsToClear
	)

void vEventGroupDelete

(

EventGroupHandle_t

xEventGroup

)

event_groups.h

   void xEventGroupDelete( EventGroupHandle_t xEventGroup );

Delete an event group that was previously created by a call to xEventGroupCreate(). Tasks that are blocked on the event group will be unblocked and obtain 0 as the event group's value.

Parameters

xEventGroup

The event group being deleted.

void vEventGroupSetBitsCallback	(	void *	pvEventGroup,
		const uint32_t	ulBitsToSet
	)

EventBits_t xEventGroupClearBits	(	EventGroupHandle_t	xEventGroup,
		const EventBits_t	uxBitsToClear
	)

EventBits_t xEventGroupGetBitsFromISR

(

EventGroupHandle_t

xEventGroup

)

EventBits_t xEventGroupSetBits	(	EventGroupHandle_t	xEventGroup,
		const EventBits_t	uxBitsToSet
	)

EventBits_t xEventGroupSync	(	EventGroupHandle_t	xEventGroup,
		const EventBits_t	uxBitsToSet,
		const EventBits_t	uxBitsToWaitFor,
		TickType_t	xTicksToWait
	)

EventBits_t xEventGroupWaitBits	(	EventGroupHandle_t	xEventGroup,
		const EventBits_t	uxBitsToWaitFor,
		const BaseType_t	xClearOnExit,
		const BaseType_t	xWaitForAllBits,
		TickType_t	xTicksToWait
	)
