#include <stdint.h>
#include "LPC17xx.h"

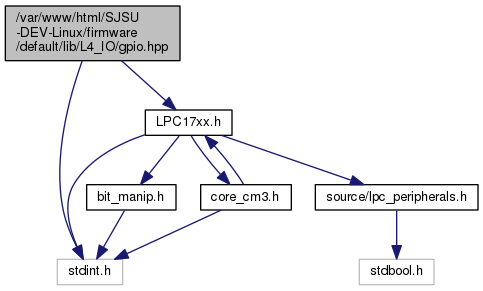

Include dependency graph for gpio.hpp:

This graph shows which files directly or indirectly include this file:

Macros
#define	__PNSB 5
	The "Port Number Start Bit" which is used to get value of port number from LPC1758_GPIO_Type. More...

Enumerations
enum	LPC1758_GPIO_Type { P0_0 = (0 << __PNSB) \| 0, P0_1 = (0 << __PNSB) \| 1, P0_26 = (0 << __PNSB) \| 26, P0_29 = (0 << __PNSB) \| 29, P0_30 = (0 << __PNSB) \| 30, P1_19 = (1 << __PNSB) \| 19, P1_20 = (1 << __PNSB) \| 20, P1_22 = (1 << __PNSB) \| 22, P1_23 = (1 << __PNSB) \| 23, P1_28 = (1 << __PNSB) \| 28, P1_29 = (1 << __PNSB) \| 29, P1_30 = (1 << __PNSB) \| 30, P1_31 = (1 << __PNSB) \| 31, P2_0 = (2 << __PNSB) \| 0, P2_1 = (2 << __PNSB) \| 1, P2_2 = (2 << __PNSB) \| 2, P2_3 = (2 << __PNSB) \| 3, P2_4 = (2 << __PNSB) \| 4, P2_5 = (2 << __PNSB) \| 5, P2_6 = (2 << __PNSB) \| 6, P2_7 = (2 << __PNSB) \| 7, P2_8 = (2 << __PNSB) \| 8, P2_9 = (2 << __PNSB) \| 9, P4_28 = (4 << __PNSB) \| 28, P4_29 = (4 << __PNSB) \| 29 }

Macro Definition Documentation

#define __PNSB 5

The "Port Number Start Bit" which is used to get value of port number from LPC1758_GPIO_Type.

Enumeration Type Documentation

Enumeration of GPIO IDs. The pins are also labeled with popular alternate options just for reference.

Warning: Do not change the value(s) or the order of the enumerations. The enum value is a combination of port number and the pin number
