I2C2 Class Reference
#include <i2c2.hpp>
Inheritance diagram for I2C2:

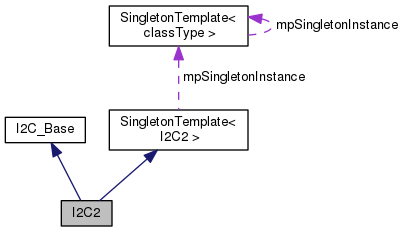

Collaboration diagram for I2C2:
Public Member Functions | |
| bool | init (unsigned int speedInKhz) |
| Initializes I2C2 at the given. More... | |
 Public Member Functions inherited from I2C_Base | |
| void | handleInterrupt () |
| uint8_t | readReg (uint8_t deviceAddress, uint8_t registerAddress) |
| bool | writeReg (uint8_t deviceAddress, uint8_t registerAddress, uint8_t value) |
| bool | readRegisters (uint8_t deviceAddress, uint8_t firstReg, uint8_t *pData, uint32_t transferSize) |
| bool | writeRegisters (uint8_t deviceAddress, uint8_t firstReg, uint8_t *pData, uint32_t transferSize) |
| bool | checkDeviceResponse (uint8_t deviceAddress) |
Friends | |
| class | SingletonTemplate< I2C2 > |
| Friend class used for Singleton Template. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from SingletonTemplate< I2C2 > | |
| static I2C2 & | getInstance () |
| Public member to get instance of this SINGLETON class. More... | |
| Protected Member Functions inherited from I2C_Base | |
| I2C_Base (LPC_I2C_TypeDef *pI2CBaseAddr) | |
| bool | init (uint32_t pclk, uint32_t busRateInKhz) |
| void | disableOperation () |
| Protected Member Functions inherited from SingletonTemplate< I2C2 > | |
| SingletonTemplate () | |
| Static Protected Attributes inherited from SingletonTemplate< I2C2 > | |
| static SingletonTemplate * | mpSingletonInstance |
Detailed Description
I2C2 Singleton Driver This is a thin wrapper around I2C_Base class and merely gives the base address of the I2C2 memory map.
Member Function Documentation
| bool I2C2::init | ( | unsigned int | speedInKhz | ) |
Initializes I2C2 at the given.
- Parameters
-
speedInKhz
Before I2C is initialized, check to be sure that the I2C wires are logic "1" means that they are pulled high, otherwise there may be a short circuit.
I2C2 is on P0.10, and P0.11
I2C wires should be pulled high for normal operation, so if they are, initialize I2C otherwise disable operations on I2C since I2C has a likely hardware BUS fault such as:
- I2C SDA/SCL with no pull-up
- I2C SDA/SCL shorted to ground
Friends And Related Function Documentation
|
friend |
Friend class used for Singleton Template.
The documentation for this class was generated from the following files:
